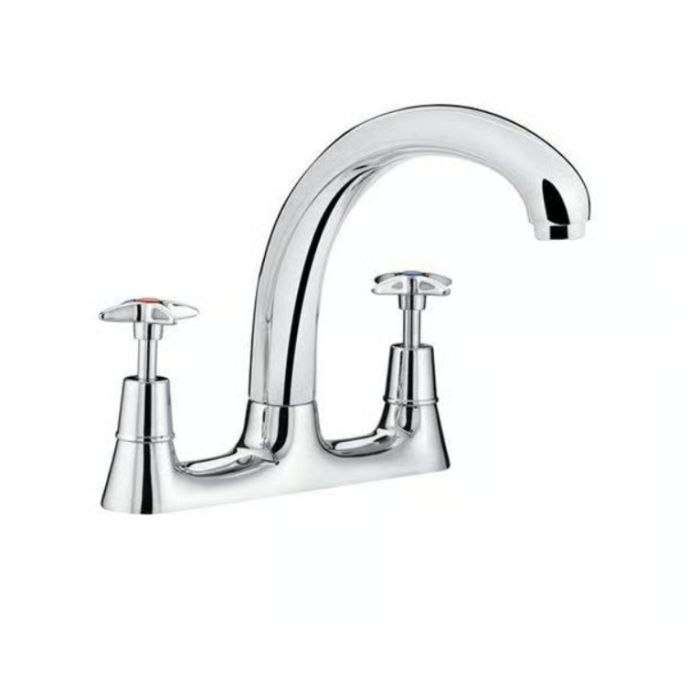

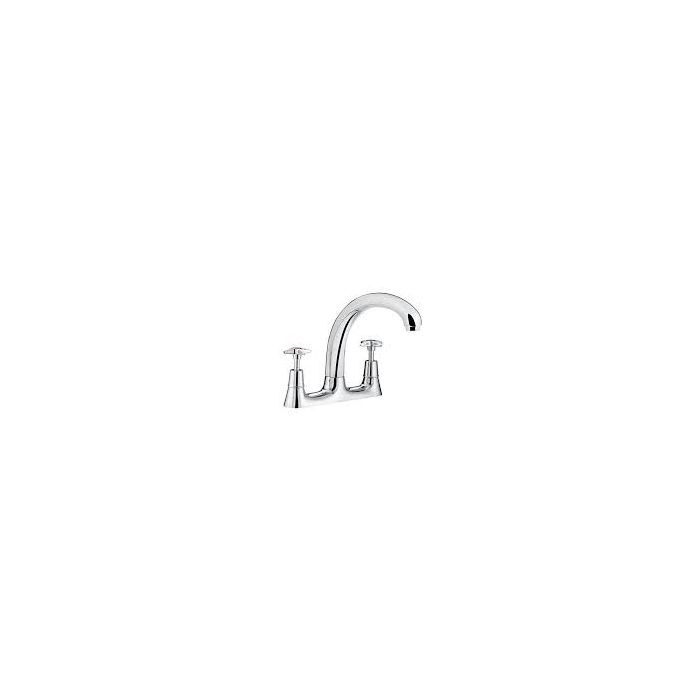

Bristan X Head Deck Sink Mixer Chrome Plated C58113

Bristan X Head Deck Sink Mixer Chrome Plated C58113

Specifications

Working Pressure Range: Min 0.2 bar, Max 5.0 bar
Maximum Static Pressure: 10 bar
BS 6700 recommends the temperature of stored water
should never exceed 65°C. A stored water temperature
of 60°C is considered sufficient to meet all requirements
and will minimise the build up of limescale in hard water
areas.

Installation Steps

Identify all components before
fitting.
 - 1 x Tap Body
 - 2 x Fixing Nuts
 - 2 x Rubber Washers
 - 1 x Tap Base Washer
1. Fit the taps to the sink using fixing
nuts supplied. The rubber washer
goes between the fixing nut and
underside of the sink.
2. Connect the hot and cold
supplies.
3. Fully open both valves, letting
them run for a few minutes to
flush out the system. Check all
joints and connections for leaks
