Below are the detailed Spare Parts for the Geberit Sigma concealed cisterns 8 cm year of manufactured in 2016
- 242.414.00.1 Geberit angle stop valve for Sigma concealed cistern 8 cm, Delta concealed cistern 12 cm, Alpha concealed cisterns 8/12 cm and Unica/UP700 concealed cisterns
- 240.298.00.1 Geberit spindle for angle valve with handwheel, left thread
- 240.347.00.1 Geberit hand wheel for angle stop valve
- 240.847.00.1 Geberit angle stop valve for Sigma/Omega/Alpha concealed cisterns 12 cm, Kappa concealed cistern 15 cm and Sigma/Alpha concealed cisterns 8 cm
-

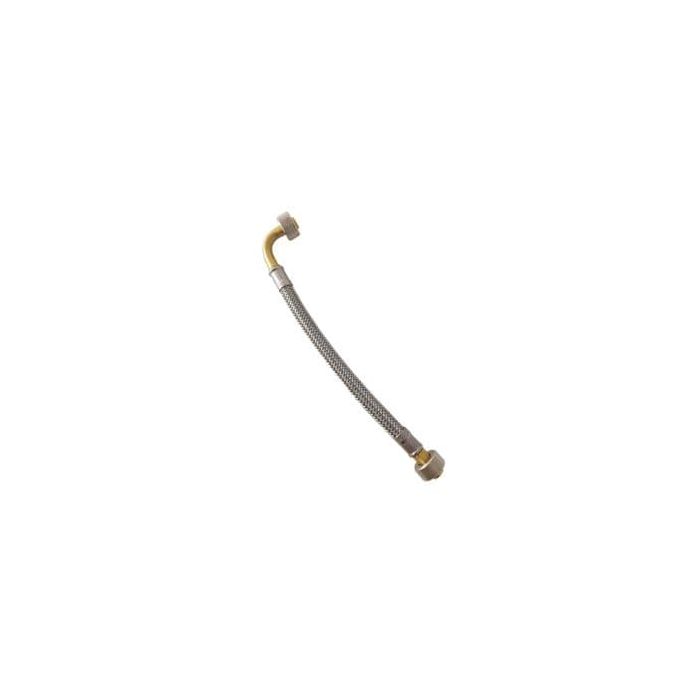

243.357.00.1 Geberit reinforced braided hose for Sigma concealed cistern 8 cm (from year of manufacture 2016)
3.1 240.922.00.1 Geberit set of seals for reinforced braided hose
4 243.279.00.1 Geberit mounting clip for types 380 and 383 filling valves and Sigma concealed cistern 8 cm (from year of manufacture 2016)
5 Go to the spare parts page: Fill valves Type 383, lateral water supply connection unit
5 244.595.00.1 Geberit Type 380AG fill valve, lateral water supply connection, 3/8″, nipple made of brass 242.984.00.1, 242.985.00.1
5 Go to the spare parts page: Fill valves type 380, lateral water supply connection
6 241.670.00.1 Geberit connecting nipple for fill valve type 380
6 246.177.00.1 Geberit connecting nipple for type 383 fill valve

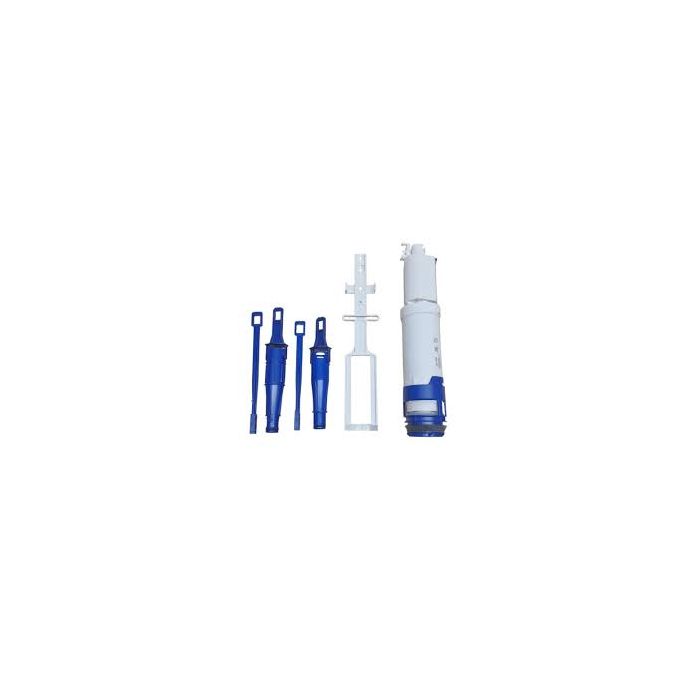

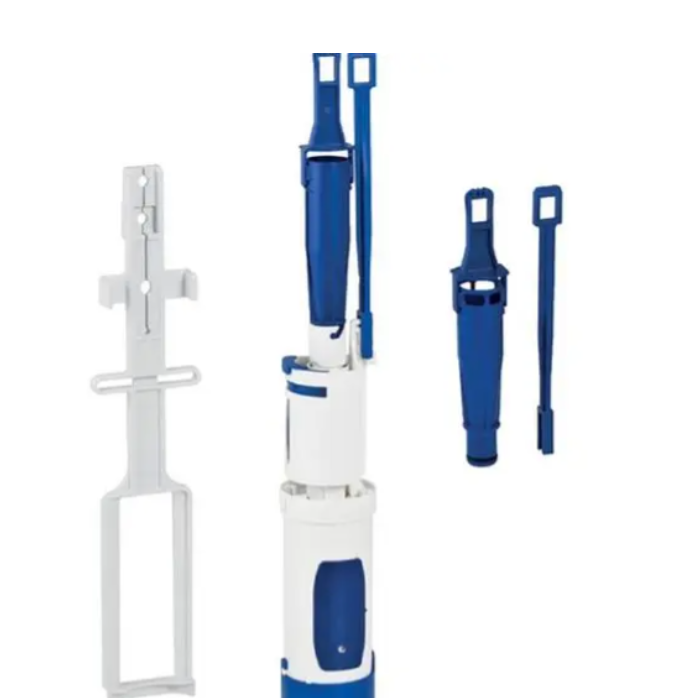

7 241.290.00.1 Geberit type 208 flush valve
7.1 241.167.00.1 Geberit bracket for flush valves
7.2 241.292.00.1 Geberit holding-down clamp for concealed cistern 8 cm
7.3 241.291.00.1 Geberit flat gasket for flush valve
7.4 242.269.00.1 Geberit type 208 basket for concealed cistern

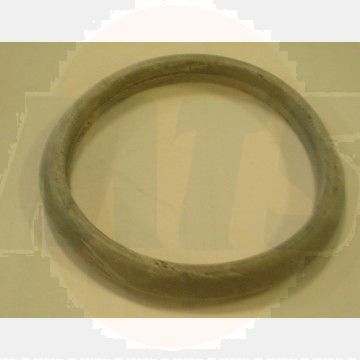

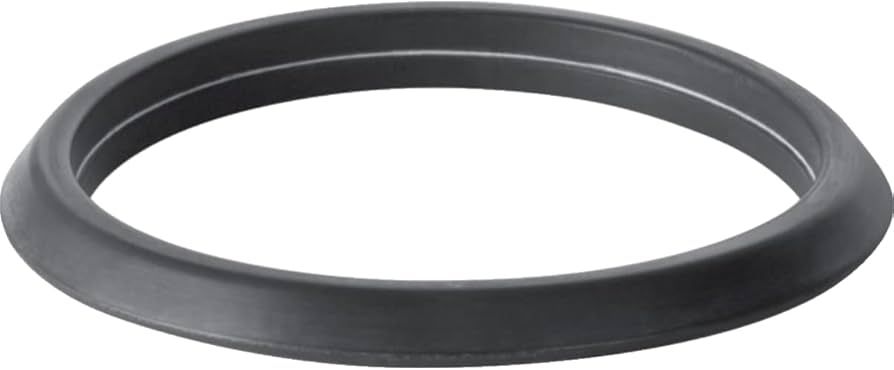

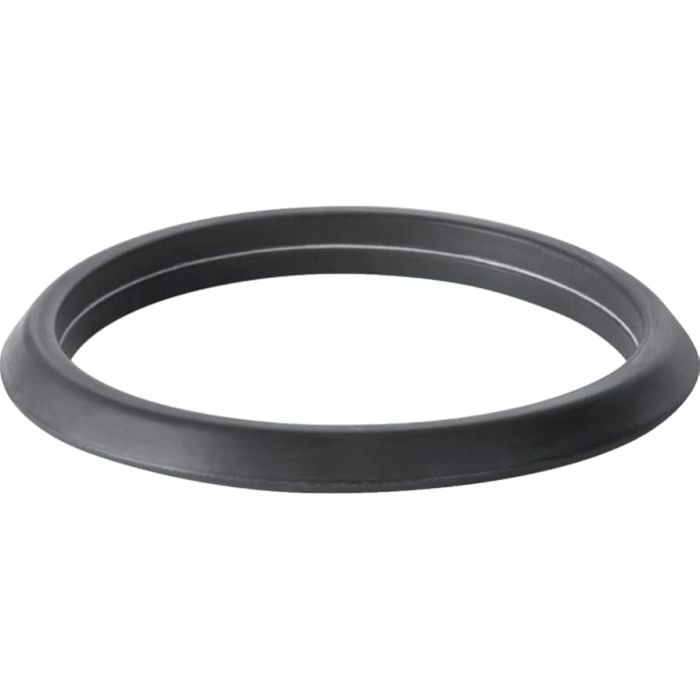

7.4.1 241.293.00.1 Geberit section seal for concealed cisterns 8 / 7.5 cm (from year of manufacture 2004)

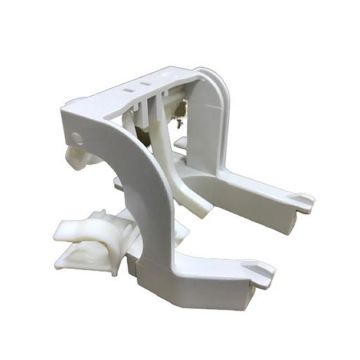

8 243.344.00.1 Geberit support block for Sigma concealed cistern 8 cm
9 242.418.00.1 Geberit protection plate for Sigma concealed cistern
10 243.345.00.1 Geberit protection box for service opening for Sigma concealed cistern, length 5 cm, parallel
11 243.346.00.1 Geberit set of fixing brackets 8 / 12 cm (2 pc.)
13 241.017.00.1 Geberit slotted flat iron with screws
14 241.297.00.1 Geberit installation accessoires for Sigma concealed cistern 8 cm

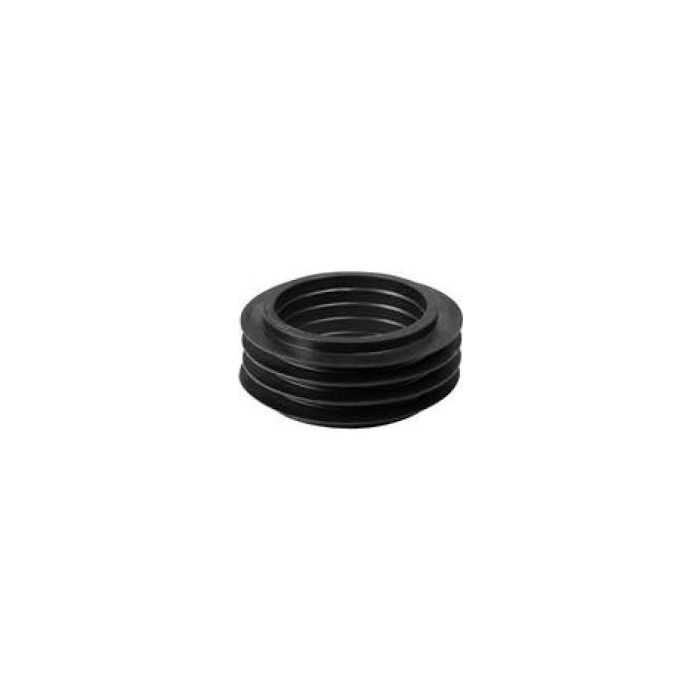

15 119.668.00.1 Geberit sleeve for flush pipe connection: d=45mm
16 855.600.00.1 Geberit ring seal socket with seal
