Jog Tornado Duo Flush Valve 5-384-561

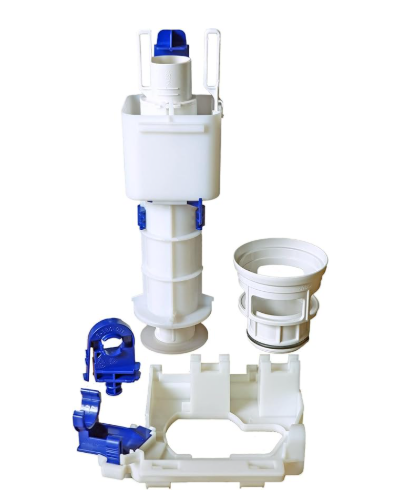

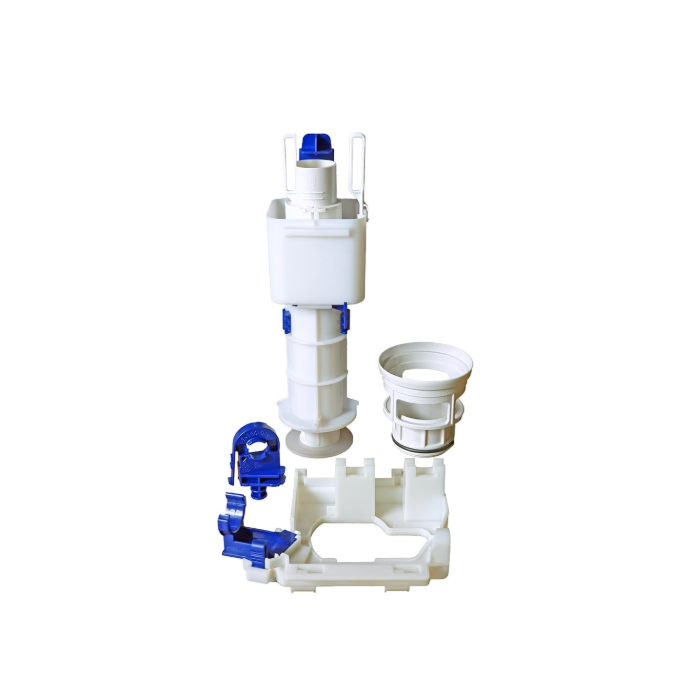

This kit solves the most common causes of leaks from Isosan N°1 and Isosan N°2 dual flow tanks. Product dimensions: - Lifting bell: height 298 mm - basin: upper outer diameter 89 mm, lower outer diameter 60 mm Scope of delivery: - Lifting bell - Silicone lifting bell seal (pre-assembled) - Basin - O-ring (pre-assembled) - Bearing bracket (bridge/support) - 2 adapters for valve holder e filling installation/Assembly: 1.) Disassemble the actuation plate, support frame and splash plate. 2) Turn the water inlet on the angle valve and detach the connecting pipe from the filling valve. 3) Loosen the filling valve of the retaining bridge (pull up) and remove it from the tank. 4) Loosen the lever of the bell eyelets. 5) Remove the retaining bridge: press the clamp and slide the full bridge to the left. 6) Remove the lifting bell 7) Pull the basin (basket) from the bottom of the tank upwards. 8) Plug in the new basin. 9) Insert a new bell. 10) Perform steps 1 through 5 in reverse order.
