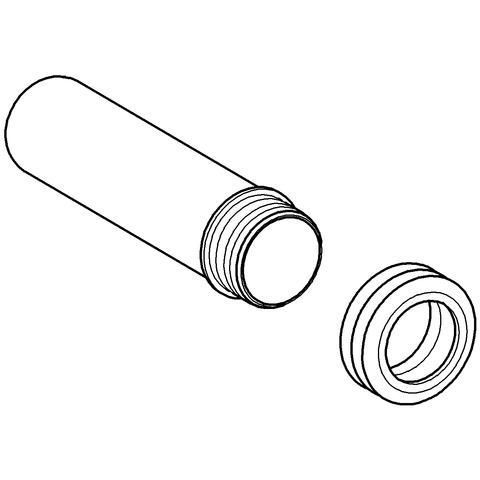

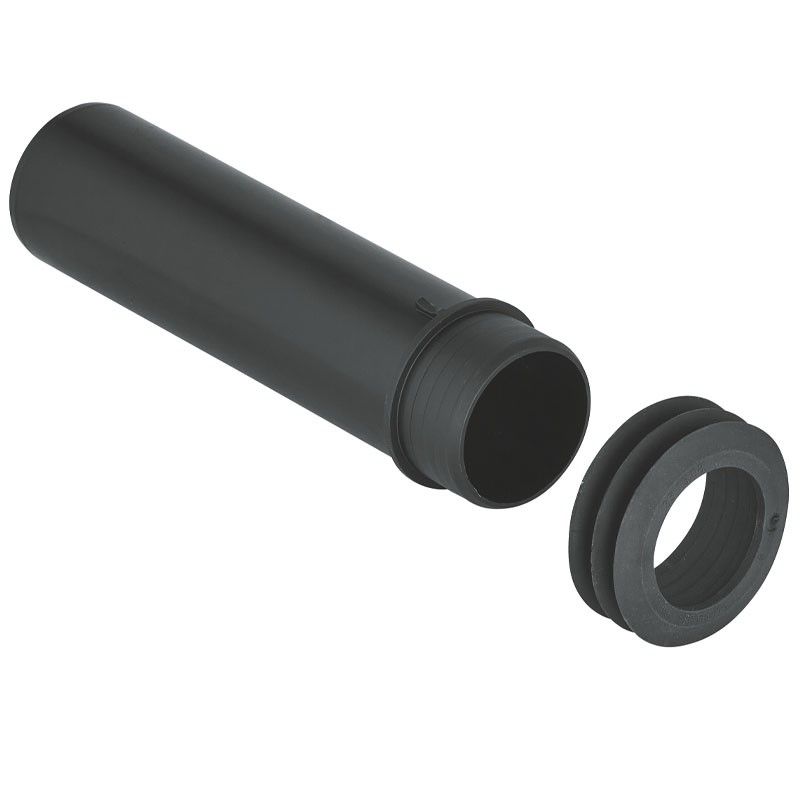

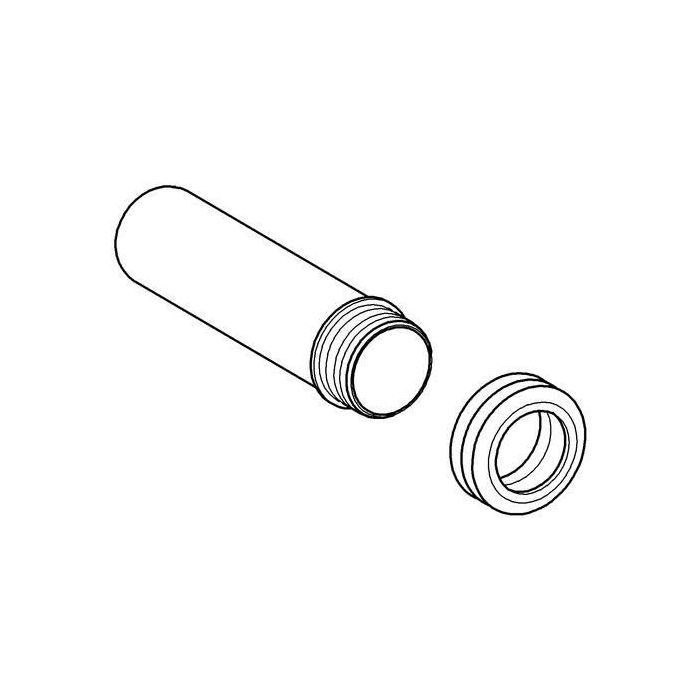

GROHE 42250000 supply and waste 42250 Grohe Connection pipe with clamp for 37104K 42250000

Below are the detailed Spare Parts for the Geberit Sigma concealed cisterns 8 cm year of manufactured in 2016

1.  242.414.00.1 Geberit angle stop valve for Sigma concealed cistern 8 cm, Delta concealed cistern 12 cm, Alpha concealed cisterns 8/12 cm and Unica/UP700 concealed cisterns
2. 240.298.00.1 Geberit spindle for angle valve with handwheel, left thread
3. 240.347.00.1 Geberit hand wheel for angle stop valve
4. 240.847.00.1 Geberit angle stop valve for Sigma/Omega/Alpha concealed cisterns 12 cm, Kappa concealed cistern 15 cm and Sigma/Alpha concealed cisterns 8 cm

5. 243.357.00.1 Geberit reinforced braided hose for Sigma concealed cistern 8 cm (from year of manufacture 2016)

   3.1        240.922.00.1 Geberit set of seals for reinforced braided hose

   4            243.279.00.1 Geberit mounting clip for types 380 and 383 filling valves and Sigma concealed cistern 8 cm (from year of manufacture 2016)

   5                           Go to the spare parts page: Fill valves Type 383, lateral water supply connection unit

   5            244.595.00.1 Geberit Type 380AG fill valve, lateral water supply connection, 3/8″, nipple made of brass       242.984.00.1, 242.985.00.1

   5                           Go to the spare parts page: Fill valves type 380, lateral water supply connection

   6            241.670.00.1 Geberit connecting nipple for fill valve type 380

   6            246.177.00.1 Geberit connecting nipple for type 383 fill valve

   7            241.290.00.1 Geberit type 208 flush valve

   7.1        241.167.00.1 Geberit bracket for flush valves

   7.2        241.292.00.1 Geberit holding-down clamp for concealed cistern 8 cm

   7.3        241.291.00.1 Geberit flat gasket for flush valve

   7.4        242.269.00.1 Geberit type 208 basket for concealed cistern

   7.4.1    241.293.00.1 Geberit section seal for concealed cisterns 8 / 7.5 cm (from year of manufacture 2004)

   8            243.344.00.1 Geberit support block for Sigma concealed cistern 8 cm

   9            242.418.00.1 Geberit protection plate for Sigma concealed cistern

   10          243.345.00.1 Geberit protection box for service opening for Sigma concealed cistern, length 5 cm, parallel

   11          243.346.00.1 Geberit set of fixing brackets 8 / 12 cm (2 pc.)

   13          241.017.00.1 Geberit slotted flat iron with screws

   14          241.297.00.1 Geberit installation accessoires for Sigma concealed cistern 8 cm

   15          119.668.00.1 Geberit sleeve for flush pipe connection: d=45mm

   16          855.600.00.1 Geberit ring seal socket with seal
