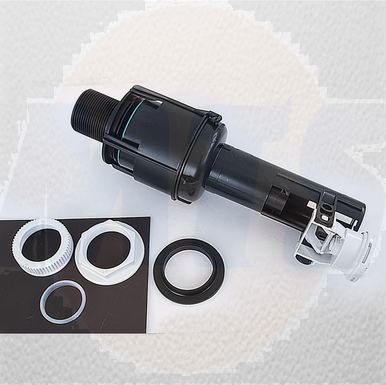

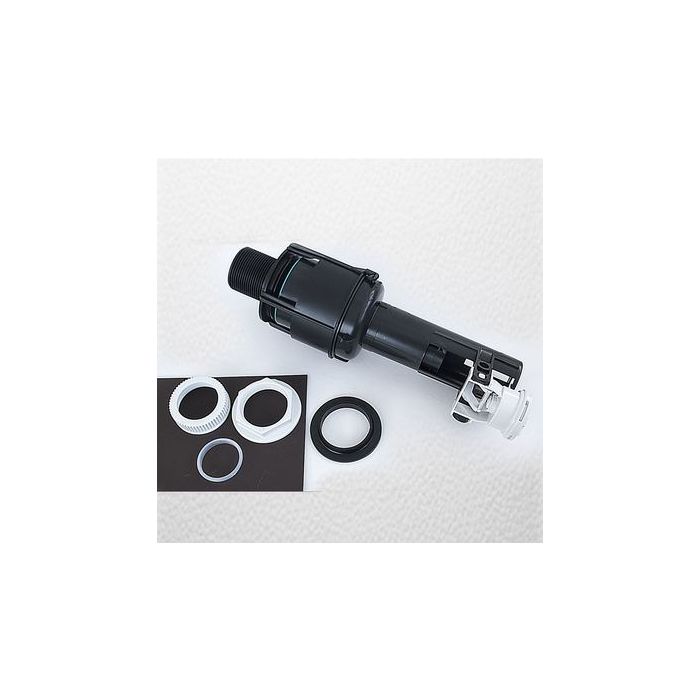

Ideal Standard Flush Valve -1.5 inch 180 160 Pneumatic SV93267

In modern bathroom design, efficiency and water conservation are paramount. The Ideal Standard pneumatic dual flush valve stands as a testament to this commitment, offering a sophisticated mechanism for controlling water usage with both full and reduced flush options. Its pneumatic operation provides a smooth, reliable, and often more durable alternative to traditional cable or rod-actuated systems. For plumbing professionals and competent DIY enthusiasts, understanding the precise installation procedure for this critical component is essential to ensure optimal performance, longevity, and compliance with water efficiency standards. This article provides a comprehensive, professional guide to fitting an Ideal Standard pneumatic dual flush valve, ensuring a seamless and effective installation. Understanding the Ideal Standard Pneumatic Dual Flush System Before embarking on the installation, it's crucial to appreciate the design and function of the Ideal Standard pneumatic dual flush valve. Unlike mechanical systems that rely on direct physical linkage, pneumatic valves utilize air pressure to actuate the flush mechanism. Pressing a flush button compresses air, which travels through a small tube to a diaphragm within the valve, lifting the flush seal. The dual flush capability is achieved through two separate buttons or a single button with two distinct press depths, each connected to a different pneumatic chamber, allowing for either a full or a water-saving reduced flush. This design minimizes wear on moving parts and offers greater flexibility in button placement, making it a popular choice for contemporary cisterns. Essential Tools and Preparatory Steps A successful installation begins with thorough preparation and the right set of tools. Having everything at hand before you start will streamline the process and prevent unnecessary delays. 1. Required Tools and Materials: ● Adjustable spanner or basin wrench ● Screwdriver set (Phillips and flathead) ● Tape measure ● Pencil or marker ● Silicone sealant (plumber's grade) ● PTFE tape (Teflon tape) ● Clean cloths or rags ● Bucket or tray (for catching residual water) ● New Ideal Standard pneumatic dual flush valve kit (ensure all components are present) ● Safety gloves and eye protection 2. Initial Preparation: ● Isolate the Water Supply: Locate the isolation valve for the toilet cistern, typically found beneath the cistern or behind the toilet, and turn it off. Flush the toilet to empty the cistern as much as possible. ● Drain Residual Water: Use a sponge or cloth to soak up any remaining water in the cistern. ● Remove Old Valve (if applicable): If replacing an existing valve, disconnect the water supply hose from the fill valve. Unscrew the large retaining nut from the underside of the cistern that holds the flush valve in place. Carefully lift out the old valve and clean the cistern thoroughly, paying attention to the flush hole. Step-by-Step Installation Guide With the cistern prepared, the installation of the new Ideal Standard pneumatic dual flush valve can commence. Precision at each step is key to a leak-free and functional system. 1. Assembling the Flush Valve: ● Inspect Components: Unpack the new valve kit and identify all parts: the main flush valve body, the sealing washer, the retaining nut, and the pneumatic tubes/buttons. ● Attach Sealing Washer: Ensure the large rubber sealing washer is correctly seated on the base of the flush valve body. This washer creates the watertight seal between the valve and the cistern. ● https://mytoiletspares.co.uk/ideal-standard-spares--flushvalve-seal-and-clip-sv01967.html 2. Installing the Valve into the Cistern: ● Position the Valve: Carefully lower the flush valve body into the cistern, aligning its threaded shaft with the flush hole at the bottom of the cistern. Ensure it sits squarely and the sealing washer is compressed evenly. ● Secure with Retaining Nut: From the underside of the cistern, thread the large plastic retaining nut onto the flush valve's shaft. Hand-tighten first, then use an adjustable spanner or basin wrench to tighten it securely. Avoid over-tightening, which can crack the ceramic, but ensure it's firm enough to prevent leaks. ● Check Alignment: Verify that the valve is upright and not leaning, as this can affect its operation. https://toiletrepairspareparts.co.uk/ideal-standard-spares-amstd-fastpart-syphon-flush-valve-df-vlv-2-180h-180-o-f-sv89067-original-one.html 3. Connecting the Pneumatic Tubes and Buttons: ● Identify Tube Connections: The flush valve will have two small ports for the pneumatic tubes, typically marked for full and reduced flush. The flush buttons will also have corresponding connections. ● Route Tubes: Carefully route the pneumatic tubes from the flush valve to the desired location of the flush buttons (usually on the cistern lid or a wall plate). Ensure the tubes are not kinked or excessively stretched. ● Connect Tubes to Valve: Push the ends of the pneumatic tubes firmly onto the designated ports on the flush valve. A secure connection is vital for proper air pressure transmission. ● Connect Tubes to Buttons: Attach the other ends of the tubes to the respective flush buttons. Ensure the correct tube is connected to the corresponding full or reduced flush button. ● Mount Buttons: Secure the flush buttons in their intended position, following the manufacturer's instructions for the specific button type (e.g., clip-in, screw-on). 4. Reconnecting Water Supply and Final Adjustments: ● Reconnect Fill Valve: If you removed the fill valve, re-install it and connect the water supply hose, using PTFE tape on threaded connections to ensure a watertight seal. ● Adjust Water Level: Turn the water supply back on and allow the cistern to fill. Adjust the fill valve to achieve the desired water level, typically marked inside the cistern or as per manufacturer guidelines. ● Adjust Flush Volume (if applicable): Some Ideal Standard valves allow for fine-tuning of the flush volumes. Consult the valve's specific instructions for adjusting the overflow pipe height or internal float mechanisms to optimize water usage for both full and reduced flushes. Testing and Troubleshooting Once installed, thorough testing is crucial to confirm proper operation and identify any potential issues. 1. Functional Testing: ● Full Flush Test: Press the full flush button firmly. Observe the water flow and ensure the valve opens completely and closes securely after the flush. ● Reduced Flush Test: Press the reduced flush button. Verify that a smaller volume of water is released and the valve closes correctly. ● Leak Inspection: Carefully inspect all connections, particularly around the base of the flush valve and the fill valve, for any signs of water leakage. Run your hand around the underside of the cistern to detect drips. 2. Common Troubleshooting Scenarios: ● Valve Not Flushing: Check pneumatic tube connections for kinks or dislodgement. Ensure buttons are fully depressing. ● Continuous Running Water: This often indicates a faulty seal. Re-check the retaining nut tightness and ensure the sealing washer is correctly seated. The valve might also need internal adjustment or cleaning if debris is preventing it from sealing. ● Weak Flush: Verify the water level in the cistern is adequate. Ensure the overflow pipe is not set too low, which would reduce the effective head of water. Maintenance Tips for Longevity Proper installation is the first step; ongoing maintenance ensures the longevity and efficiency of your Ideal Standard pneumatic dual flush valve. ● Regular Cleaning: Periodically clean the cistern to prevent limescale and debris buildup, which can affect the valve's seals and moving parts. ● Inspect Seals: Over time, rubber seals can degrade. If you notice continuous running water, inspect the main flush seal for wear or damage and replace it if necessary. ● Check Pneumatic Tubes: Ensure the pneumatic tubes remain free from kinks and are securely connected. ● Avoid Harsh Chemicals: Do not use abrasive cleaners or harsh chemicals inside the cistern, as these can damage rubber components and plastic parts of the valve. By adhering to these professional guidelines, the installation of an Ideal Standard pneumatic dual flush valve can be executed with confidence and precision. This not only ensures the immediate functionality of the toilet but also contributes to the long-term efficiency and water-saving benefits that these advanced systems are designed to provide, upholding the highest standards of modern plumbing practice.
