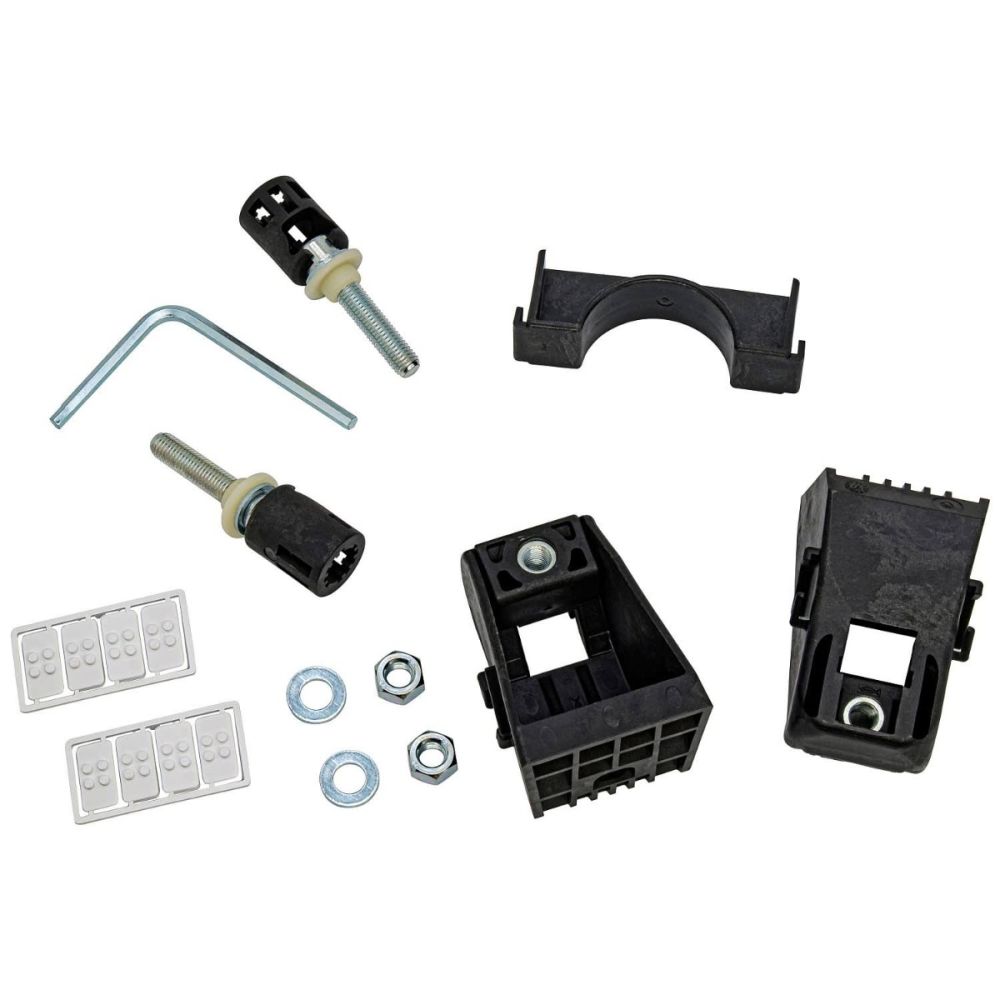

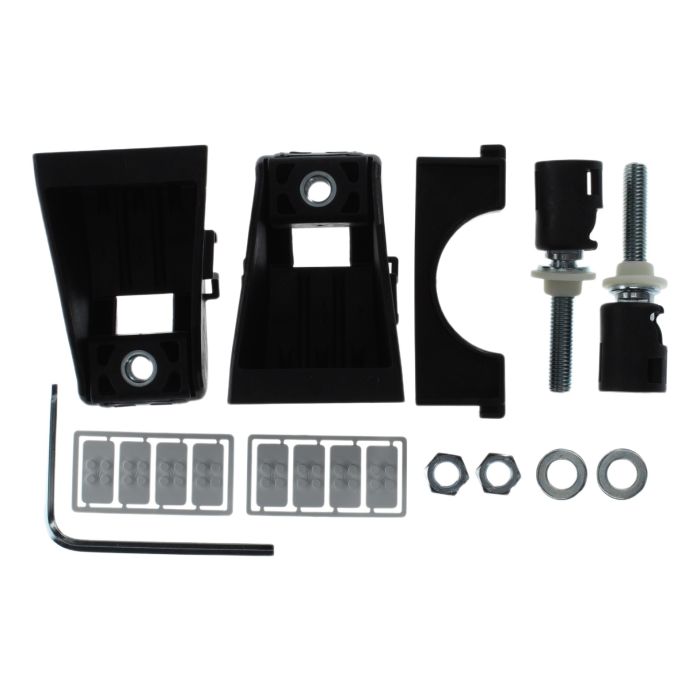

Villeroy & Boch suprafix kit 92238300 Spare parts Suprafix 3.0 compact Fastening set, 166x273mm

Precision in Practice: The Professional Installation of the Villeroy & Boch 92238300 System In the realm of high-end sanitaryware, the name Villeroy & Boch stands synonymous with quality, innovation, and timeless design. However, even the most meticulously crafted products, such as the Villeroy & Boch 92238300 installation system, can only deliver their full potential when installed with an equivalent level of precision and expertise. This comprehensive system, comprising a sophisticated wall-hung pan, an efficient flush valve, and an elegantly designed push button, represents a commitment to both aesthetics and functionality. This article aims to guide plumbing professionals through the critical steps involved in the installation of this integrated system, ensuring optimal performance, longevity, and the pristine finish expected from Villeroy & Boch products. Understanding the Villeroy & Boch 92238300 System Components The Villeroy & Boch 92238300 system is engineered as a cohesive unit, where each component plays a vital role in the overall functionality and user experience. A thorough understanding of these elements is the first step towards a successful installation. Villeroy & Boch Wall-Hung Pan: This is the visible centerpiece of the system, renowned for its space-saving design, ease of cleaning, and modern aesthetic. Its wall-hung nature requires a robust concealed frame system for support, contributing to a minimalist bathroom environment. Villeroy & Boch Flush Valve: Integrated within a concealed cistern (typically part of the wall-hung frame), the flush valve is the heart of the flushing mechanism. It is responsible for controlling the water flow from the cistern to the pan, ensuring efficient waste removal with minimal water consumption, often featuring dual-flush capabilities. Villeroy & Boch Push Button: Serving as the user interface, the push button is not merely a functional component but also a design element. It activates the flush valve, offering a tactile and visually appealing control mechanism that seamlessly integrates with the bathroom décor. Its precise engineering ensures reliable operation of the flush system. The integrated design philosophy behind these components means that their individual installation steps are interdependent, necessitating a holistic approach to the entire process. Pre-Installation Planning and Preparation Successful installation begins long before any tools are picked up. Meticulous planning and preparation are paramount to avoid complications and ensure a smooth, efficient process. Site Assessment and Verification: Confirm the structural integrity of the wall where the wall-hung frame will be mounted. It must be capable of supporting the combined weight of the frame, pan, water, and user. Verify the precise locations of water supply lines and waste outlets, ensuring they align with the Villeroy & Boch frame's requirements. Check for adequate clearances around the installation area, adhering to local building codes and Villeroy & Boch's recommended dimensions. Component Inspection and Inventory: Carefully unpack all Villeroy & Boch components (pan, flush valve, push button, and associated fixings). Inspect each item for any signs of damage incurred during transit. Cross-reference against the packing list to ensure all necessary parts are present before commencing work. Tool and Material Gathering: Assemble all required tools, including a spirit level, measuring tape, drill, appropriate drill bits, wrenches, screwdrivers, pipe cutters, sealant gun, and personal protective equipment. Ensure all supplementary materials, such as a compatible concealed cistern/frame system (if not supplied as part of the 92238300 kit but required for the wall-hung pan), fixing bolts, and high-quality sanitary silicone sealant, are readily available. Consultation of Technical Datasheets: Thoroughly review the Villeroy & Boch installation manuals and technical datasheets specific to the 92238300 system. Pay close attention to rough-in dimensions, mounting heights, and connection specifications. Isolation of Utilities: Prior to any work, ensure the main water supply to the installation area is completely isolated to prevent accidental leaks or flooding. Installation of the Wall-Hung Frame and Flush Valve The concealed frame forms the structural backbone of the wall-hung system, and its precise installation is critical for the stability and functionality of the entire unit. The flush valve is integrated within this frame's cistern. Frame Mounting and Leveling: Position the Villeroy & Boch compatible wall-hung frame (which typically includes the concealed cistern) against the wall according to the specified rough-in dimensions. Mark the drilling points accurately. Drill holes and securely fix the frame to the wall and/or floor using the manufacturer-provided fixings. Crucially, use a spirit level to ensure the frame is perfectly level and plumb in all directions. Adjust the frame's adjustable feet as necessary. Cistern and Flush Valve Integration: Install the Villeroy & Boch flush valve mechanism inside the concealed cistern, following the specific instructions provided. This typically involves securing the inlet valve and outlet valve (flush valve) components. Connect the water supply line to the cistern's inlet valve, ensuring all connections are tightened securely to prevent leaks. Waste Pipe Connection: Connect the waste outlet pipe from the cistern to the main drainage system. Use appropriate seals and ensure a watertight, secure connection that allows for proper fall. Initial Water Test: Temporarily open the water supply to the cistern to allow it to fill. Conduct an initial leak check on all water supply and waste connections within the concealed frame. Rectify any leaks immediately. Frame Concealment Preparation: Once the frame and internal components are verified, prepare for the boxing-in process (e.g., plasterboard, tiling), ensuring that the threaded rods for the pan and the access panel for the push button are correctly positioned and accessible. Mounting the Wall-Hung Pan and Push Button With the concealed elements securely in place, the focus shifts to the visible components, requiring careful handling and precise alignment for a flawless finish. Pan Mounting: Carefully slide the Villeroy & Boch wall-hung pan onto the threaded rods protruding from the concealed frame. Ensure the pan's waste outlet aligns perfectly with the cistern's waste pipe connection. Secure the pan using the provided nuts and washers. Tighten them evenly and firmly, but avoid overtightening, which could damage the ceramic. Waste Connection (Pan to Cistern): Ensure the connection between the pan's waste spigot and the cistern's waste pipe is sealed correctly, typically using a rubber or plastic seal provided by Villeroy & Boch. This connection must be watertight. Sealant Application: Apply a neat, continuous bead of high-quality sanitary silicone sealant around the perimeter where the Villeroy & Boch pan meets the finished wall surface. This provides a hygienic seal, prevents water ingress, and offers a clean, professional aesthetic. Smooth the sealant for a tidy finish. Push Button Installation: Install the Villeroy & Boch push button onto the access panel of the concealed cistern. Connect the pneumatic or mechanical linkages from the push button to the flush valve mechanism inside the cistern, following the manufacturer's specific instructions. Test the operation of both flush options (if dual-flush) to ensure smooth, responsive activation of the flush valve. Adjust linkages as necessary for optimal performance. Final Checks, Testing, and Handover The final stage involves comprehensive testing and a thorough inspection to guarantee the system's flawless operation and to prepare for client handover. Comprehensive Flush Testing: Conduct multiple full and half flushes (if applicable) to thoroughly test the Villeroy & Boch flush valve's operation, water flow, and the pan's waste removal efficiency. Observe the water level in the cistern and ensure it refills correctly and silently. Leak Detection (Final): Perform a meticulous inspection of all visible and accessible connections for any signs of leaks, particularly around the pan's waste connection and the cistern's water inlet. Push Button Functionality Verification: Confirm that the Villeroy & Boch push button operates smoothly and reliably, engaging the correct flush volume for each button press. System Cleanliness: Thoroughly clean the installed Villeroy & Boch unit, removing any sealant residue, fingerprints, or construction debris. The finished product should be pristine. Client Handover and Guidance: Provide the client with any relevant Villeroy & Boch user manuals, maintenance instructions, and warranty information. Explain the operation of the dual-flush system and any specific care requirements for the ceramic surfaces. The professional installation of the Villeroy & Boch 92238300 system is a testament to the installer's skill and attention to detail. By adhering to these guidelines and the manufacturer's specifications, professionals ensure that this premium sanitaryware delivers not only its intended aesthetic appeal but also its full promise of durability, efficiency, and a superior user experience for years to come. Precision in every step is the hallmark of a truly professional installation.
